StarWind Virtual SAN Hyper-Converged Cluster: Scale-Out Existing Deployments for VMware vSphere

Published: August 21, 2014

INTRODUCTION

Traditionally VMware requires having some sort of the shared storage to guarantee the data safety, allow the virtual machines migration, enables continuous application availability and eliminates any single point of failure within IT environment. VMware users have to choose between two options when choosing the shared storage:

• Hyper-Converged solutions, that allows sharing the same hardware resources for the application (i.e. hypervisor, database) and the shares storage, thus decreasing the TCO and achieving the outstanding performance results.

• Compute and Storage separated solutions that keeps the compute and storage layers separately from each other, thus making the maintenance easier, increasing the hardware usage efficiency and allows building the system accurately for solving the task.

This guide is intended for experienced VMware and Windows system administrators and IT professionals who would like to add the Scale-Out node to the StarWind® Virtual SAN cluster. It provides a step-by step guidance on scaling out the hyper-converged 2-node StarWind Virtual SAN that converts the local storage of the ESXi hosts into a fault tolerant shared storage resource for ESXi.

A full set of up-to-date technical documentation can always be found here, or by pressing the Help button in the StarWind Management Console.

For any technical inquiries please visit our online community, Frequently Asked Questions page, or use the support form to contact our technical support department.

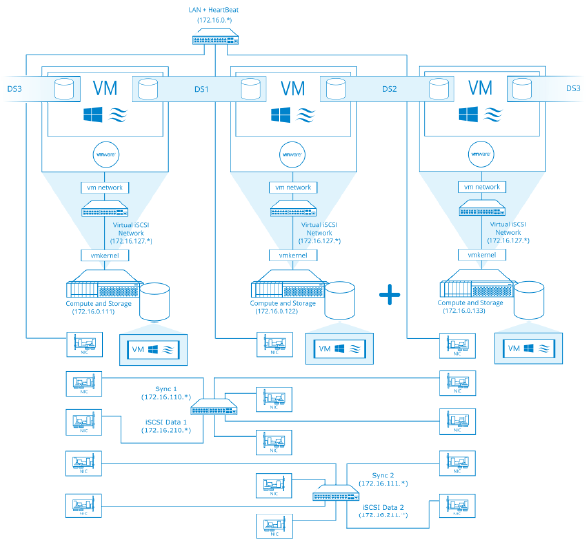

Solution Diagram

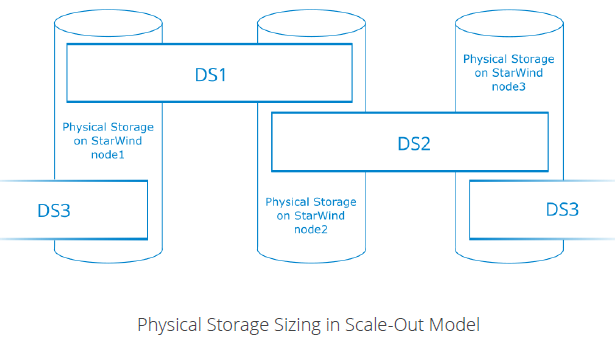

The diagram bellow illustrates the network and storage configuration of the resulting solution described in the guide.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Preparing Cluster

Add Host to Cluster

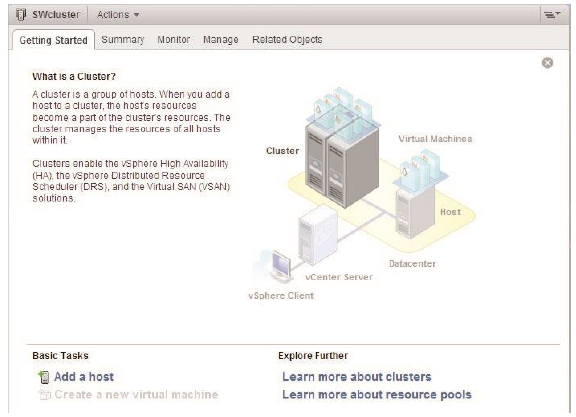

1. Open your cluster inset and click Add a host.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

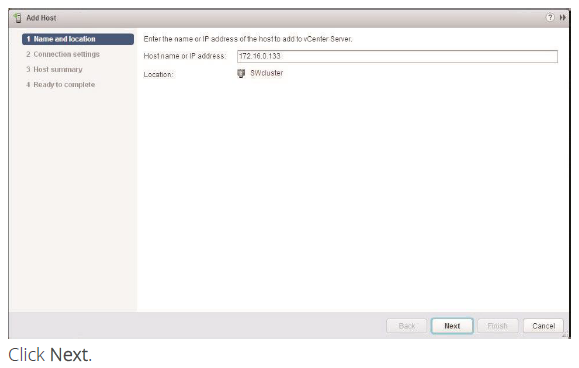

2. Enter name or IP address of the ESXi host.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

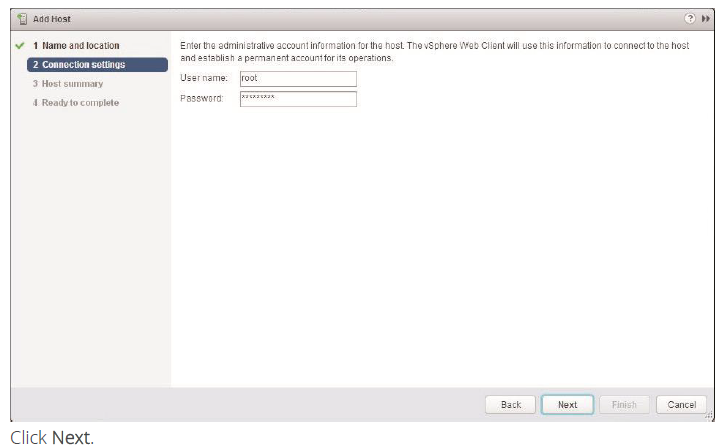

3. Enter the administrative account information.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

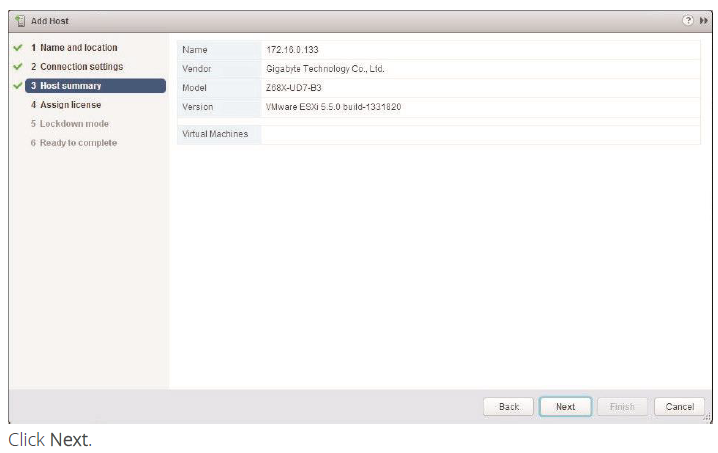

4. Verify settings.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

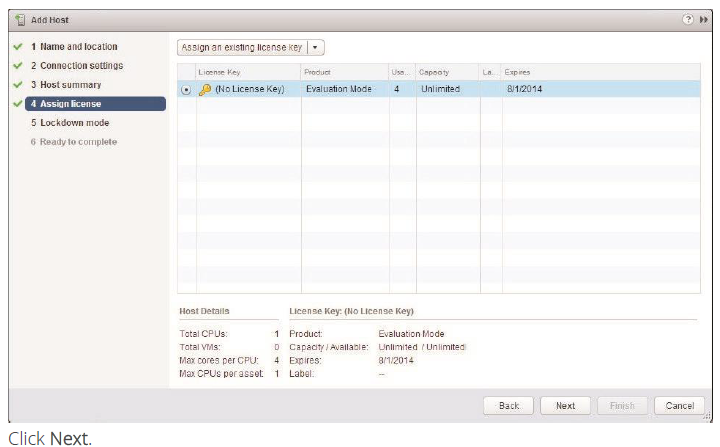

5. Assign the License.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

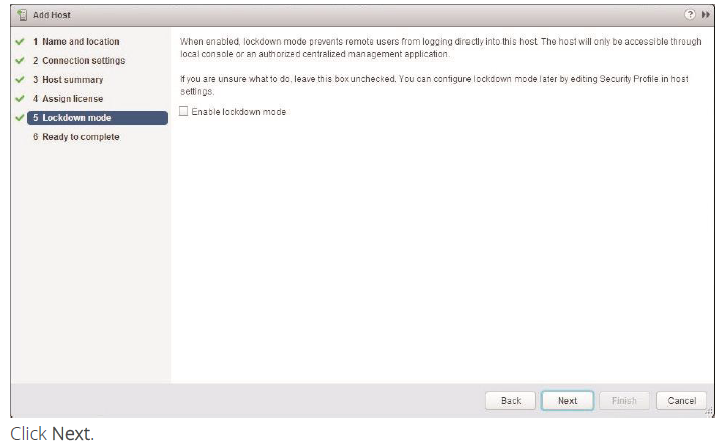

6. Lockdown mode is not enabled by-default.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

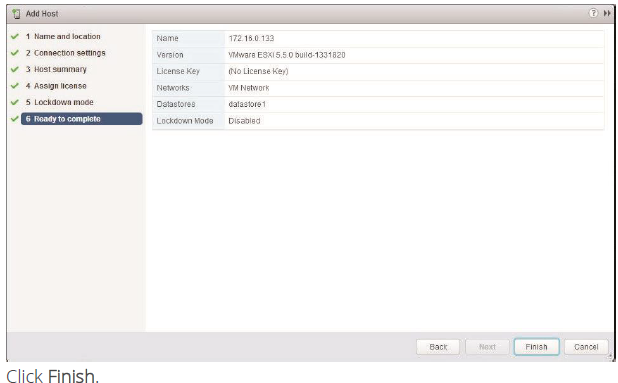

7. Verify the settings.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

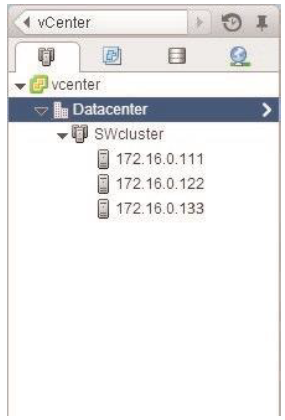

8. Result is on the screen below.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Configuring Networks

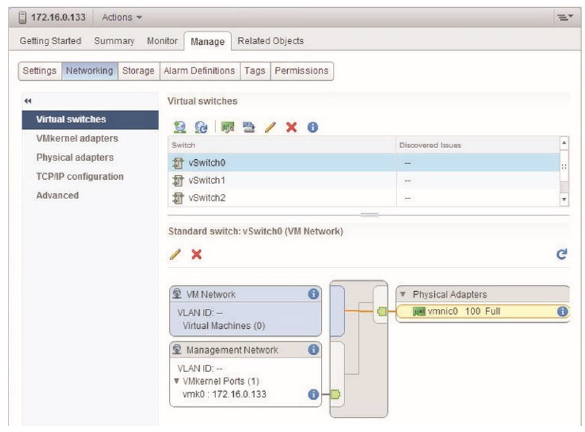

1. Create vSwitch to use for HeartBeat and LAN.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

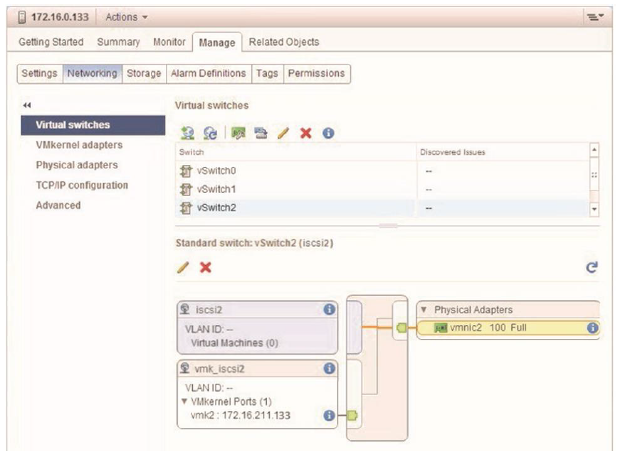

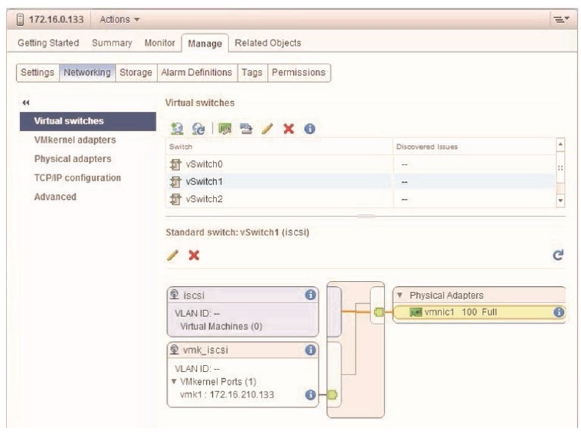

2. Create 2 vSwitches to use as ISCSI Data channels.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

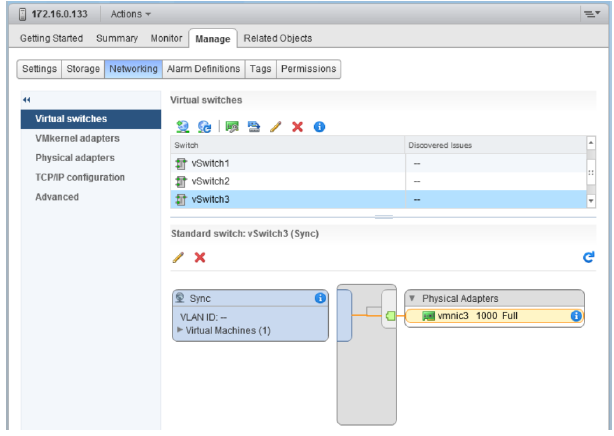

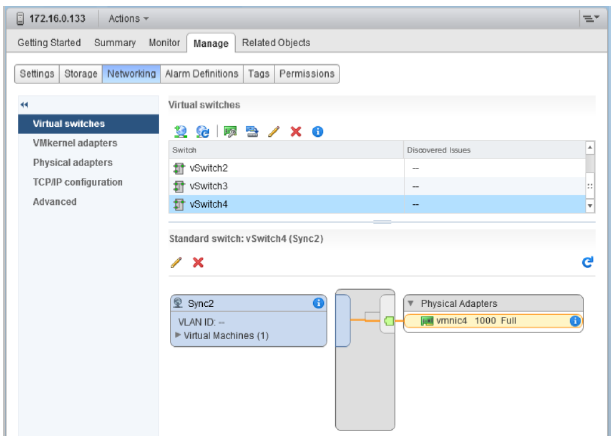

3. Create 2 vSwitches to use as SYNC channels.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Preparing StarWind VM

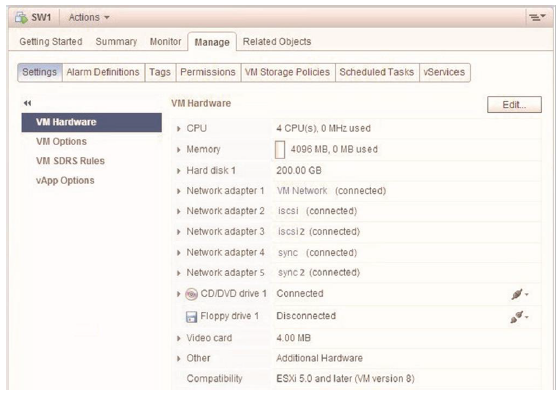

1. Create VM (SW3) on this host with Windows 2012 R2 where StarWind will be deployed with the following settings.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

2. Start the VMs, install OS and StarWind on it.

Configuring Automatic storage rescan

For third ESXi host configure automatic storage rescan.

1. Download vSphere PowerCLI and install it on each StarWind virtual machine:

https://my.vmware.com/web/vmware/details?downloadGroup=PCLI550&productId=352

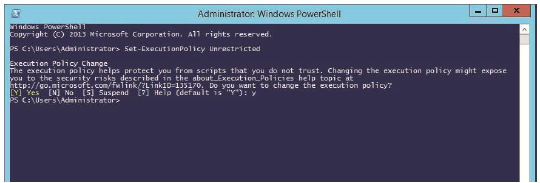

2. In the VM running StarWind open Powershell and change the Execution policy to Unrestricted.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

3. Type in Set-ExecutionPolicy Unrestricted and press Enter.

4. In the StarWind Management Console select the server, switch to the Configuration Tab on the right and press the Event Notifications link. Press the Add link in the upper right corner of the tab.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

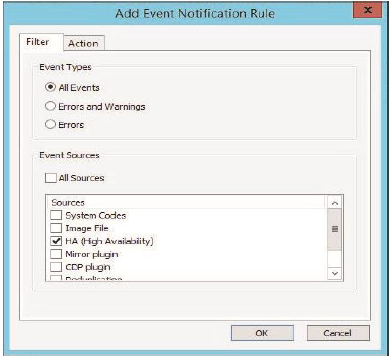

5. Select All events radio button and enable the HA plugin checkbox.

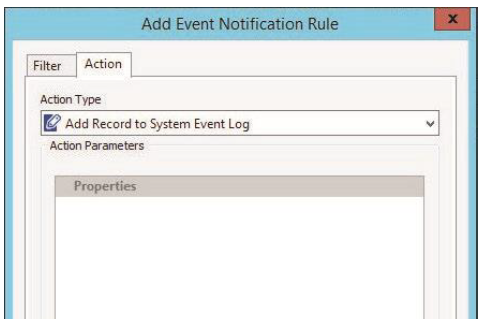

6. On the Action tab pick Add record to system event log from the menu.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

7. Create a script which will do an HBA rescan on the hypervisor host

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Add-PSSnapin VMware.VimAutomation.Core | Out-Null
$ESXiHost1 = “IP address”
$ESXiUser = “Login”
$ESXiPassword = “Password”
Connect-VIServer $ESXiHost1 –User $ESXiUser –Password $ESXiPassword | Out-Null
Get-VMHostStorage $ESXiHost1 –RescanAllHba
Disconnect-VIServer $ESXiHost1 –Confirm:$false

In the appropriate lines specify the ESXi host IP address and login credentials on which this StarWind VM is stored and running:
$ESXiHost1 = “IP address”
$ESXiUser = “Login”
$ESXiPassword = “Password”
Save the script as rescan_script.ps1 on C:\ of the VM.

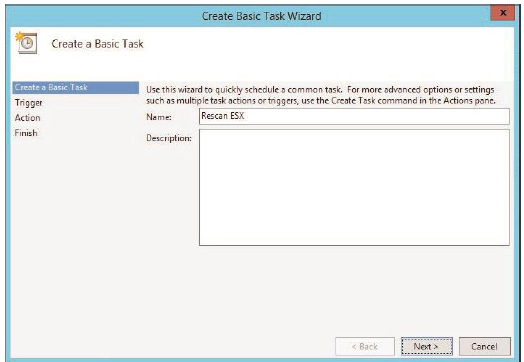

8. Go to Control Panel -> Administrative Tools -> Task Scheduler -> Create Basic Task , and follow the wizard steps:

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

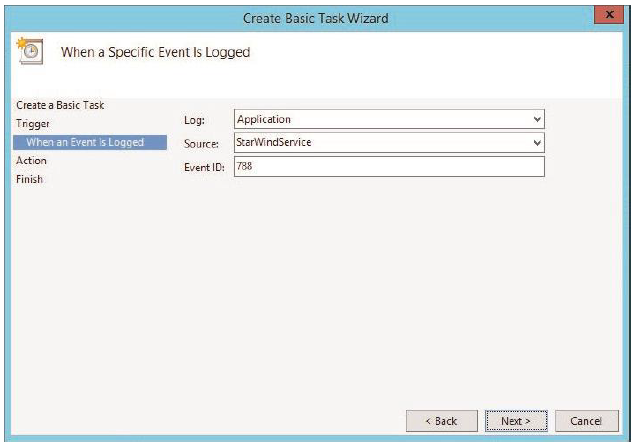

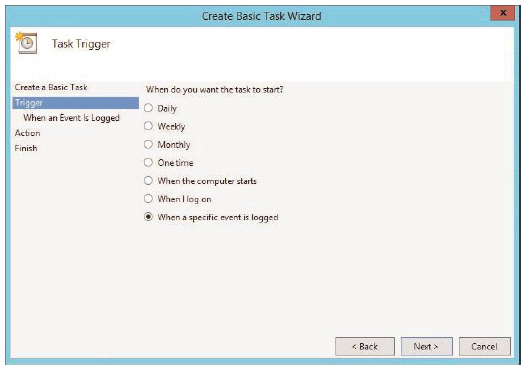

9. Click the Next button.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

10. Click the Next button.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

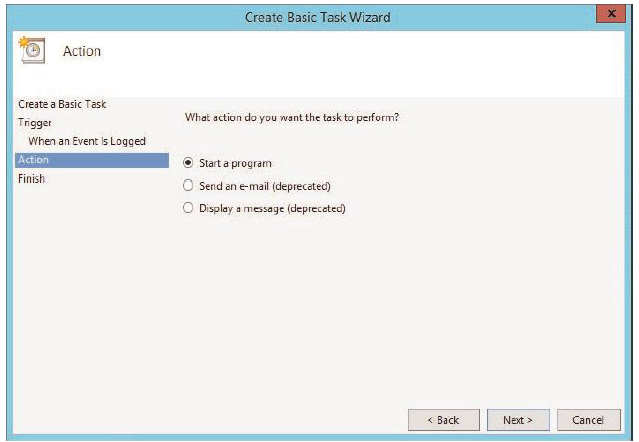

11. Click the Next button.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

12. Click the Next button.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

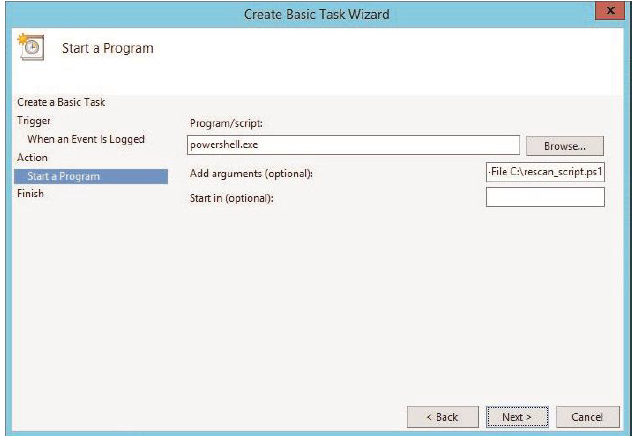

13. In the Add arguments field type: “- ExecutionPolicy Bypass – NoLogo – NonInteractive – NoProfile – WindowStyle Hidden – File C:\rescan_script.ps1”. Click the Next button.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

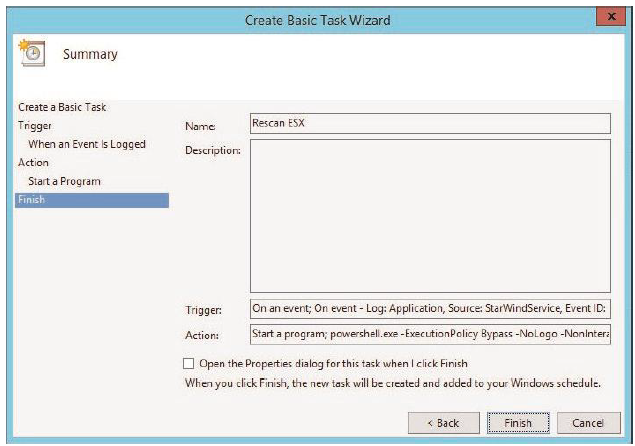

14. Click Finish to exit the Wizard.

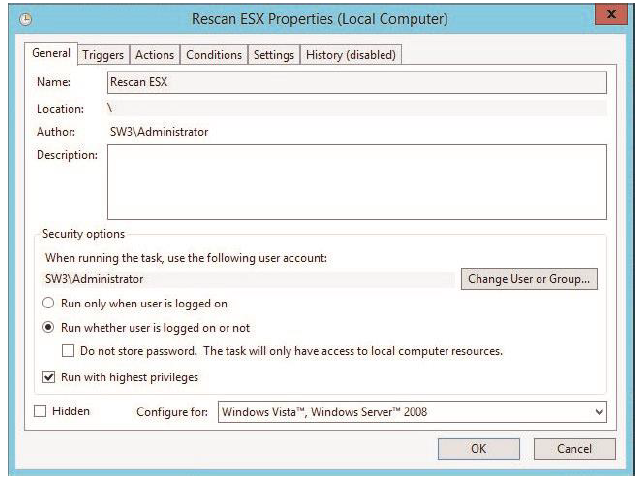

15. Configure the task to run with highest privileges by enabling the checkbox at the bottom of the window. Also make sure that “Run whether user is logged on or not” option is selected.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

16. Switch to the Triggers Tab.

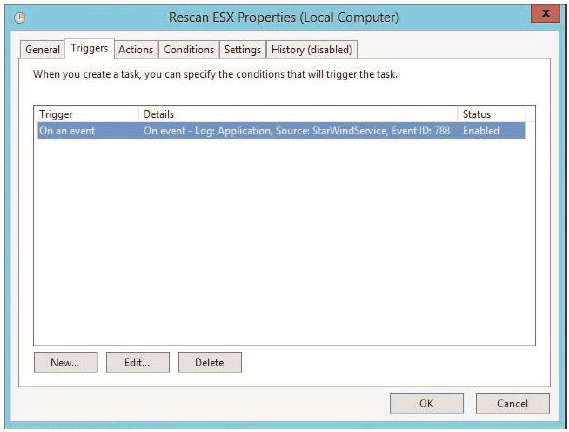

17. On the Triggers Tab verify that the trigger is setup correctly.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

18. Switch to the Actions Tab.

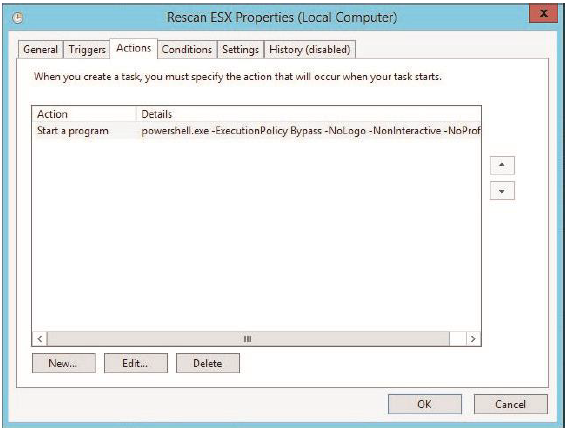

19. On the Actions Tab verify the parameters for the task.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

20. Press OK and type in the credentials for the user whose rights will be used to execute the command.

Replacing Partner for (DS2)

1. Add third StarWind node (SW3).

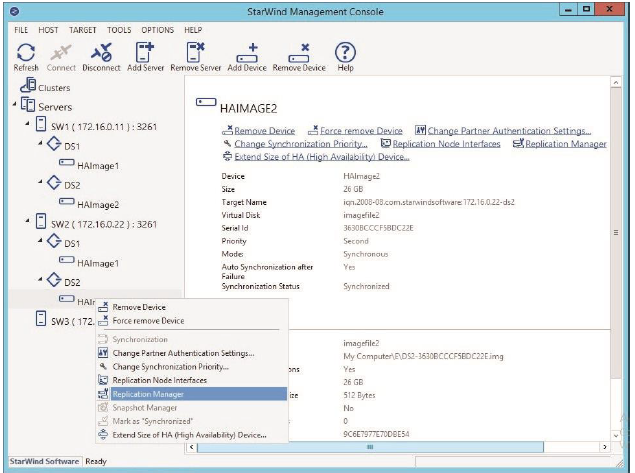

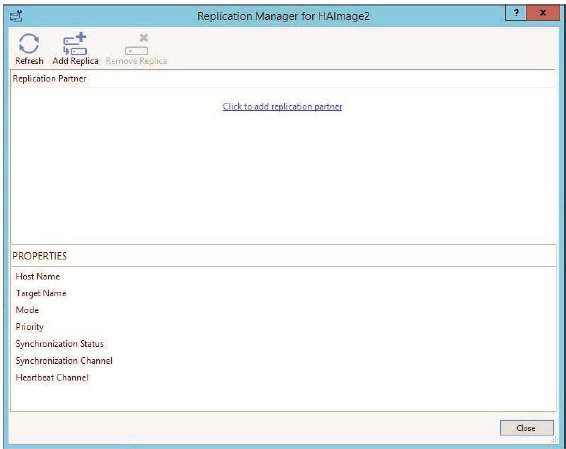

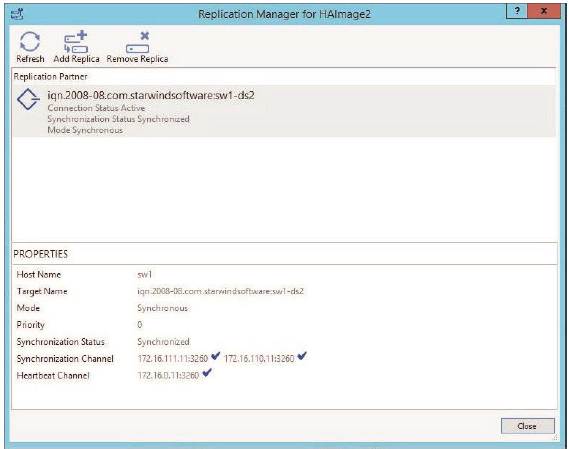

2. Open replication manager on device DS2 from second StarWind node.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

3. Click Remove Replica.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

4. Click Add replica.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

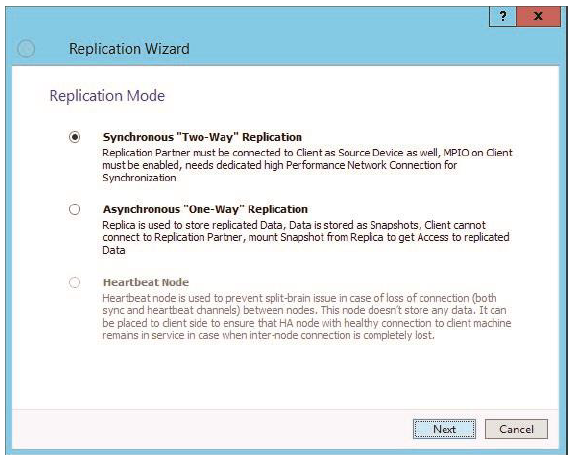

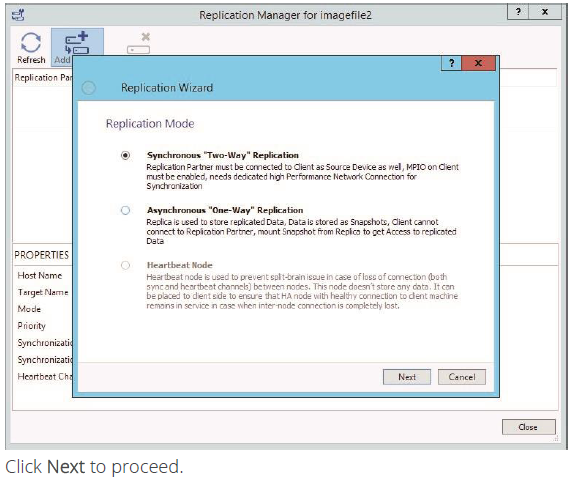

5. Select Synchronous “Two-Way” Replication and click Next.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

6. Enter name or IP address of the third StarWind node.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

7. Select Create new Partner device.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

8. Click Change Network Settings.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

9. Select HeartBeat and synchronization channels.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

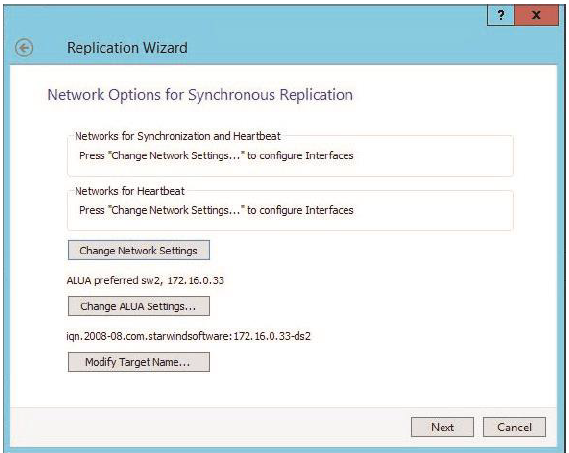

10. Click OK. You will return to Network Option for Synchronization Replication. Click Next.

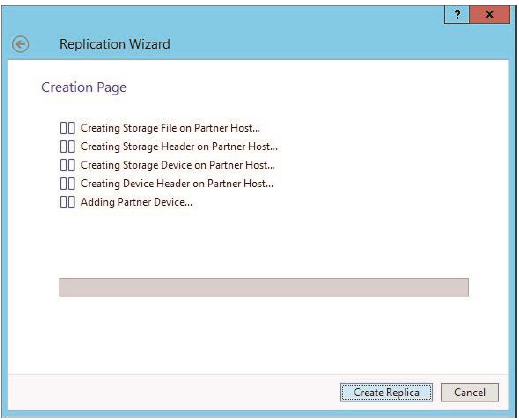

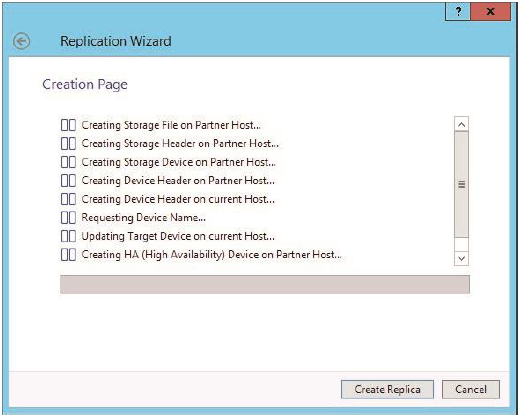

11. Click Create Replica.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

12. After creation click Finish to close Replication Wizard.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Preparing Storage with StarWind (DS3) Creating Virtual Disk (DS3)

1. Open Add Device (advanced) Wizard.

2. Select Hard disk device as the type of a device to be created. Click Next to continue.

3. Select Virtual disk. Click Next to continue.

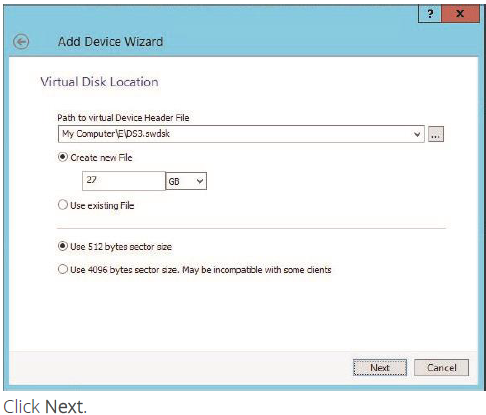

4. Specify a virtual disk location and size.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

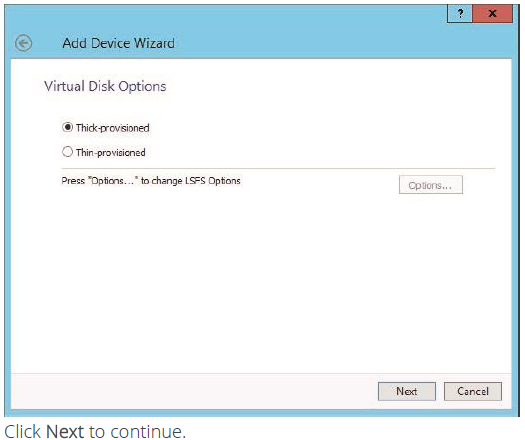

5. Specify virtual disk options.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

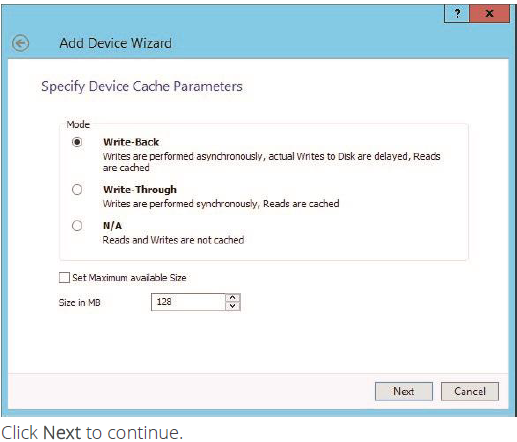

6. Define the caching policy and specify the cache size (in MB). You can also set maximum available cache size by selecting the appropriate checkbox.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

7. Optionally, define the L2 caching policy and the cache size. Click Next to continue.

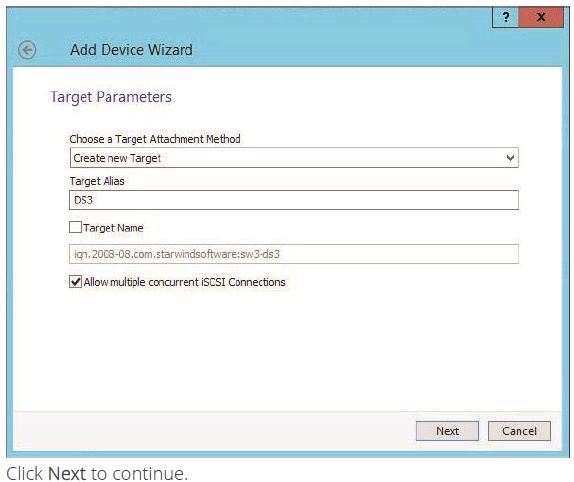

8. Specify target parameters. Select the Target Name checkbox to enter a custom name of a target.

Otherwise, the name is generated automatically in accordance with the specified target alias.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

9. Click Create to add a new device and attach it to the target.

10. Click Finish to close the wizard.

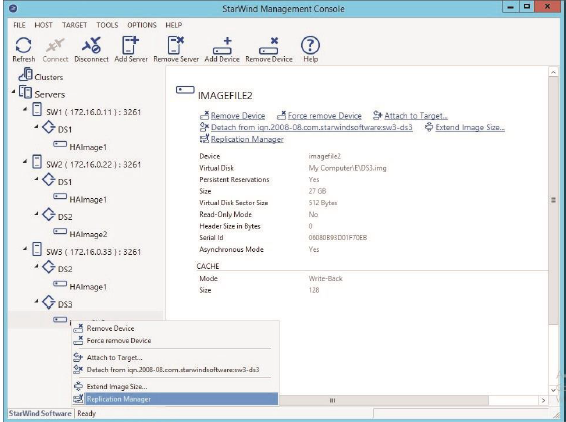

11. Right-click the recently created device and select Replication manager from the shortcut menu.

12. Then, click Add replica.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

13. Select Synchronous two-way replication as a replication mode.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

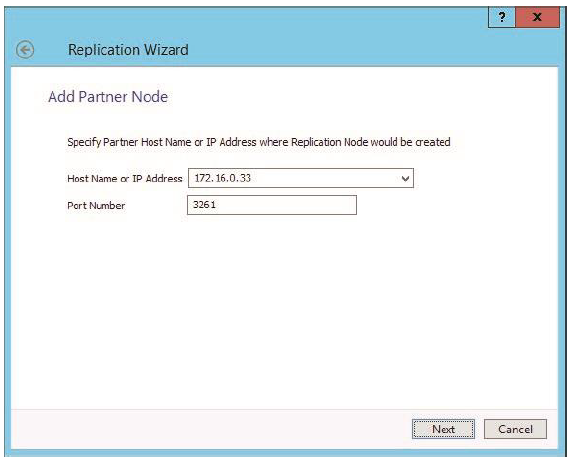

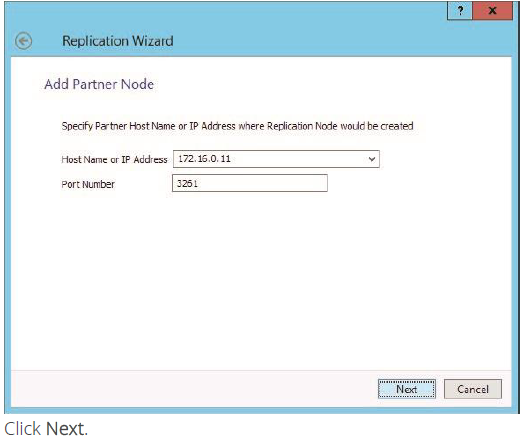

14. Specify a partner hostname, IP address and port number.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

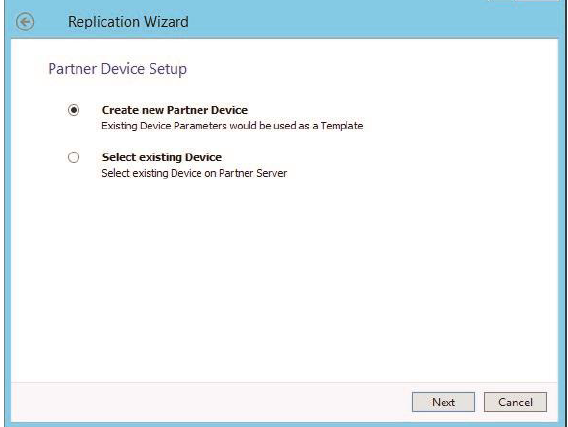

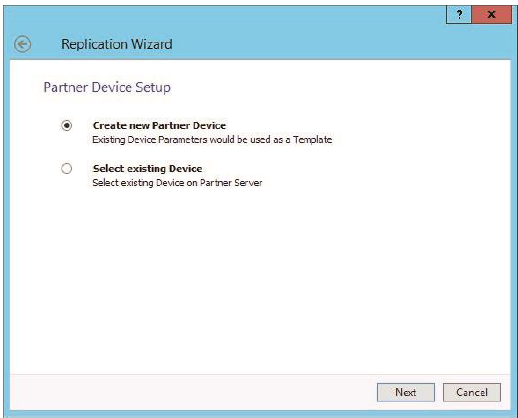

15. Choose Create new Partner Device and click Next.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

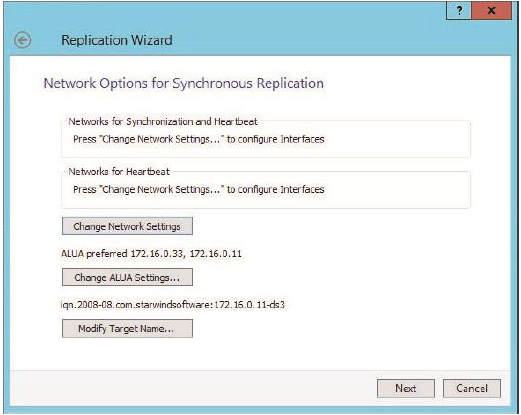

16. Click Change network settings….

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

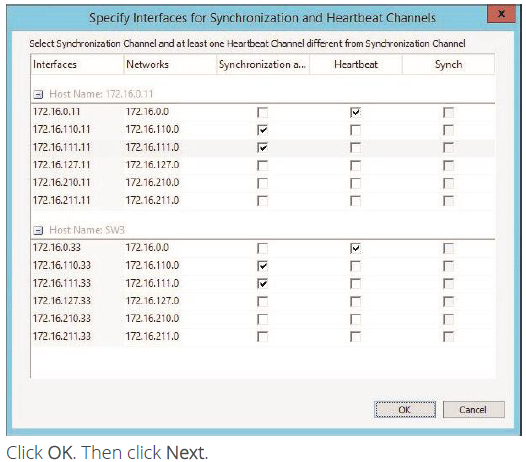

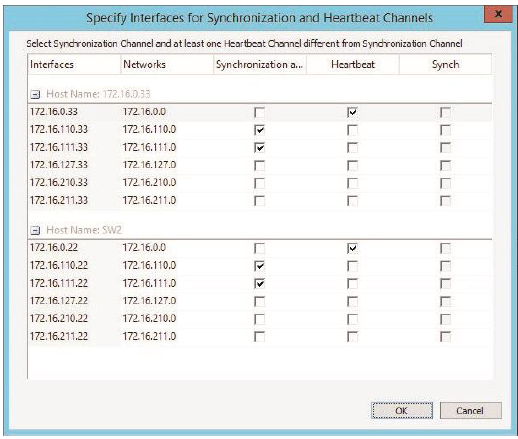

17. Specify interfaces for synchronization and Heartbeat channels.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

18. Click Create Replica.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

19. Click Finish to close the wizard.

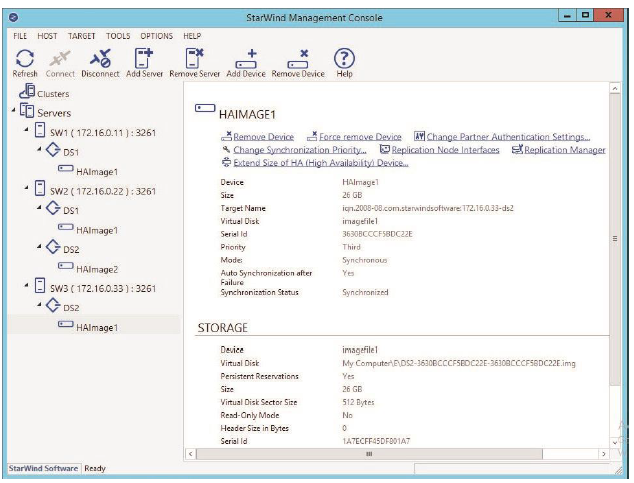

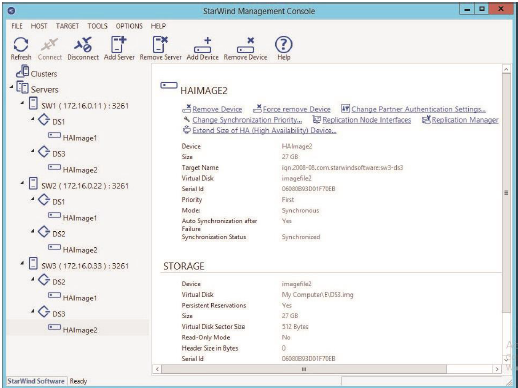

20. The successfully added devices appear in the StarWind Console.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Preparing Datastores

Adding Discover portals

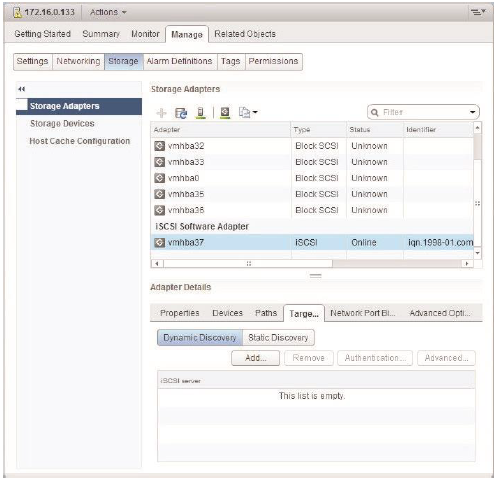

1. To connect previously created devices to ESX host click over manage tab, then click Storage and choose (or add) the ISCSI storage adapter. Under Adapter details section click Targets tab.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

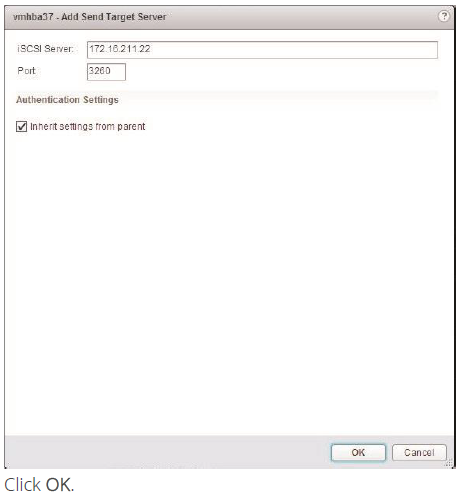

2. Under Dynamic Discovery click the Add… button to add iSCSI servers.

3. Enter the IP address of the first SrtarWind node (sw1) from the virtual local network 172.16.127.*

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

4. Add another IP addresses of the first StarWind node (sw1) form networks: iSCSI Data1 and iSCSI Data2.

5. iSCSI Data1 – 172.16.210.*

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

6. iSCSI Data2 – 172.16.211.*

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

7. Add another IP addresses of the second StarWind node (sw2) form networks: iSCSI Data1 and iSCSI Data2. iSCSI Data1 – 172.16.210.*

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

8. iSCSI Data2 – 172.16.211.*

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

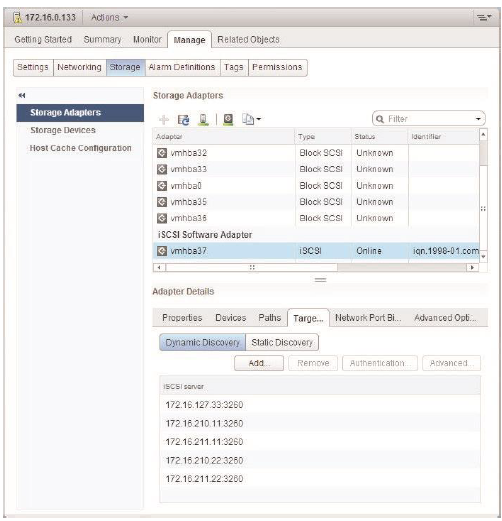

9. The result should look like the image below.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

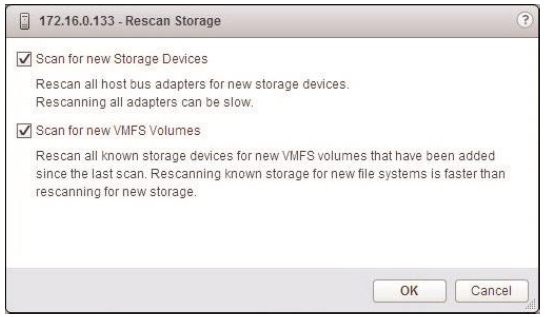

10. After that, rescan storage.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

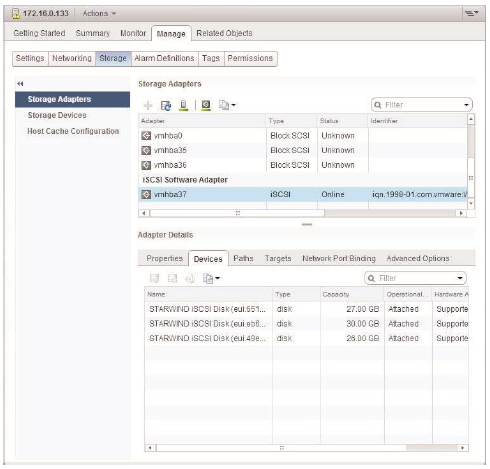

11. Now you should see the previously created StarWind devices.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

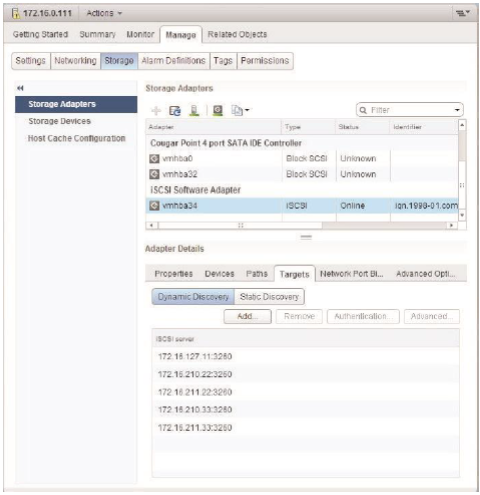

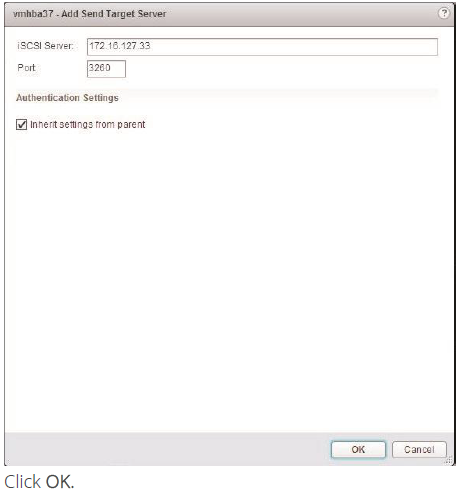

12. Add the third node addresses to the list on the first ESXi host. Check that all the addresses are added and all devices are discovered.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

13. Add the third node addresses to the list on the second ESXi host. Check that all the addresses are added and all devices are discovered.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Creating datastore (DS3)

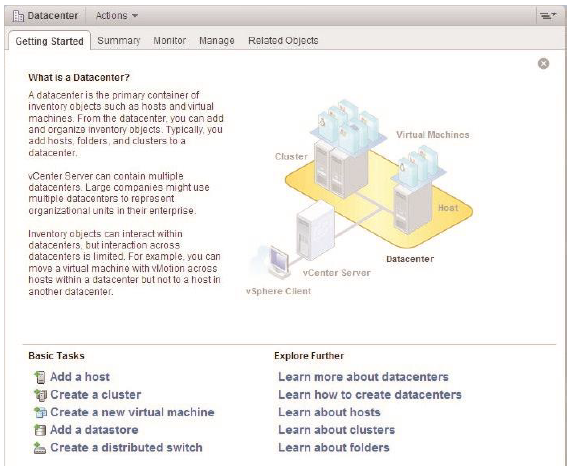

1. Open Datacenter Getting Started tab and click Add a datastore.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

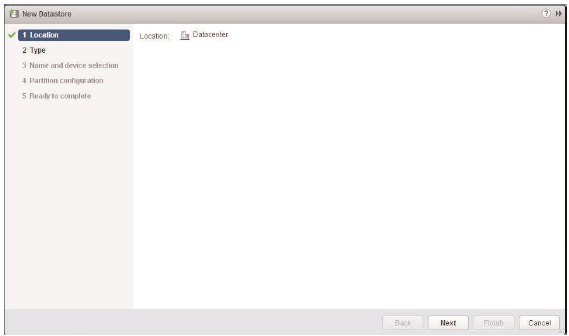

2. New Datastore wizard appears.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

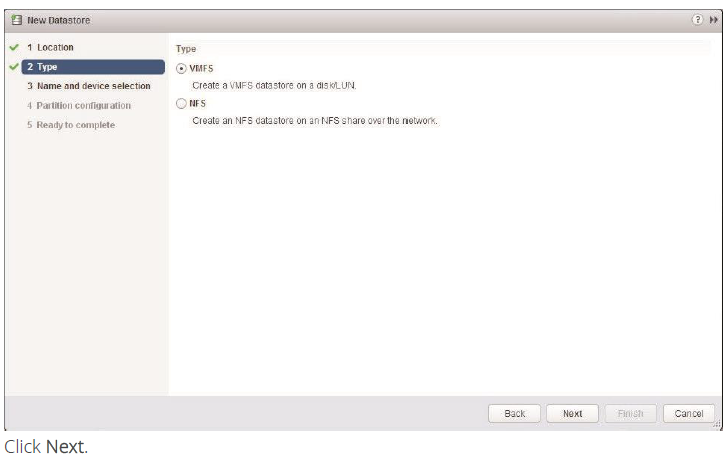

3. Select vmFS.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

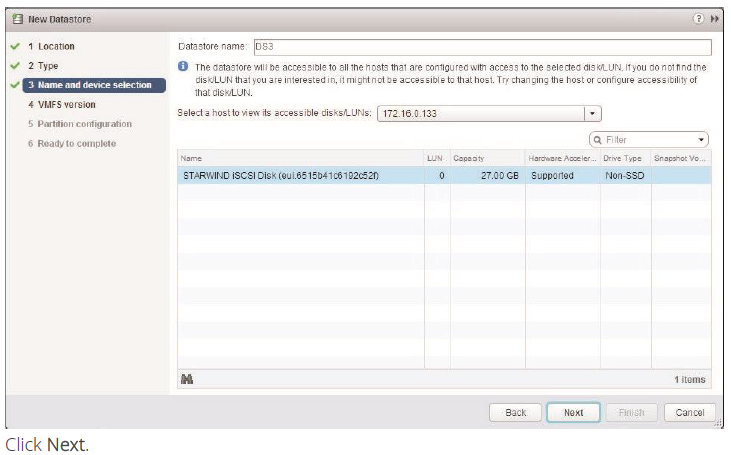

4. Enter the name of datastore (DS3), select the third host and device for datastore.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

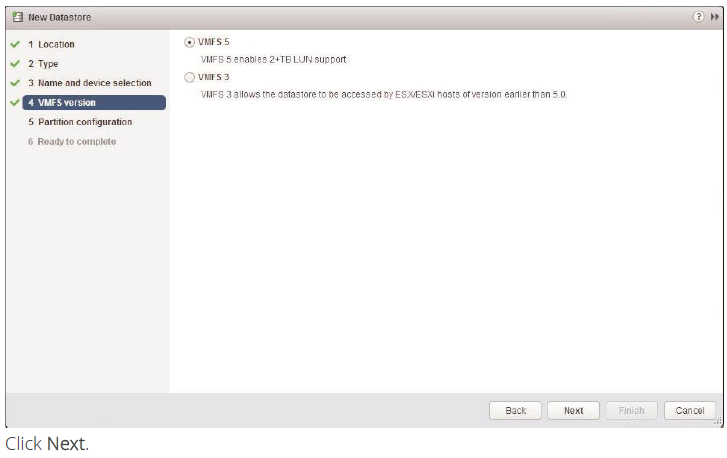

5. Select vmFS 5.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

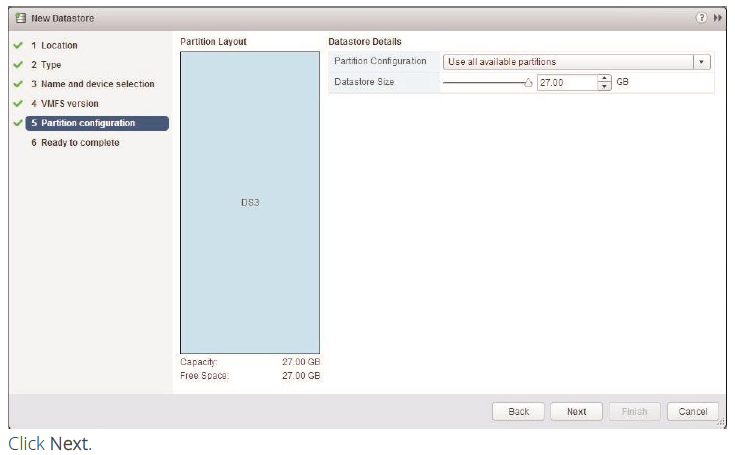

6. Enter datastore size.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

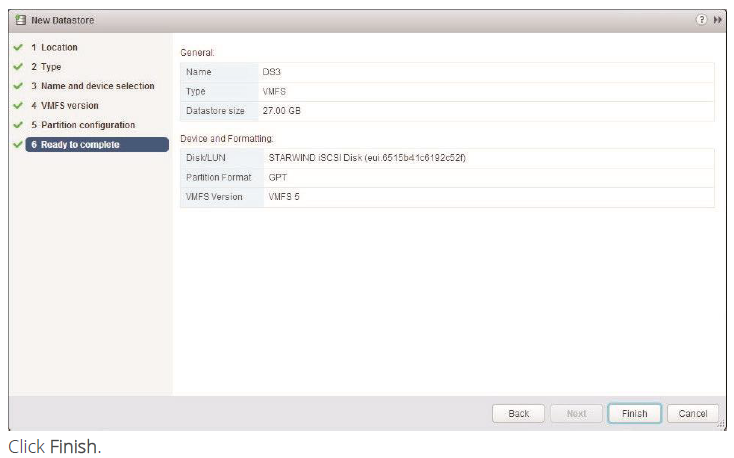

7. Verify the settings.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

Configuring StarWind VM Startup/Shutdown

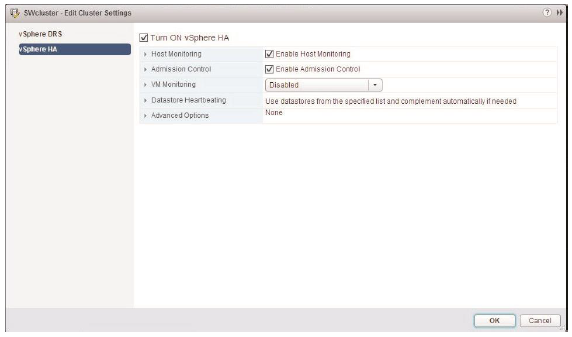

1. Open cluster setting, inset vSphere HA, click Edit…

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

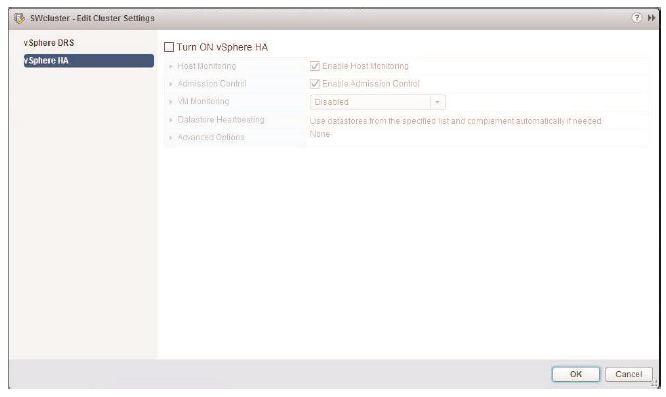

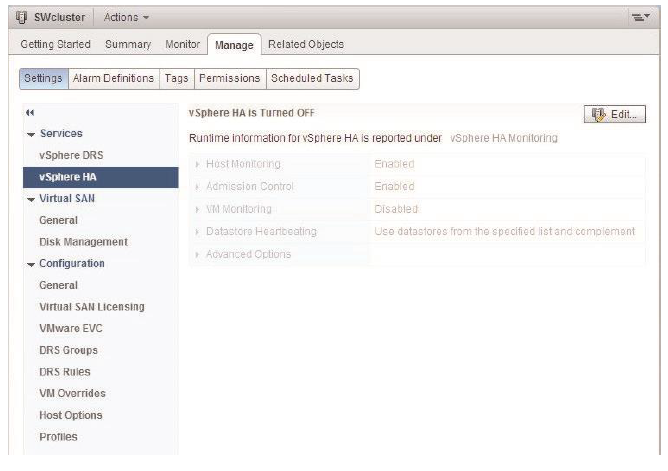

2. Temporarily Turn OFF vSphere HA. (uncheck Turn ON checkbox) Click OK.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

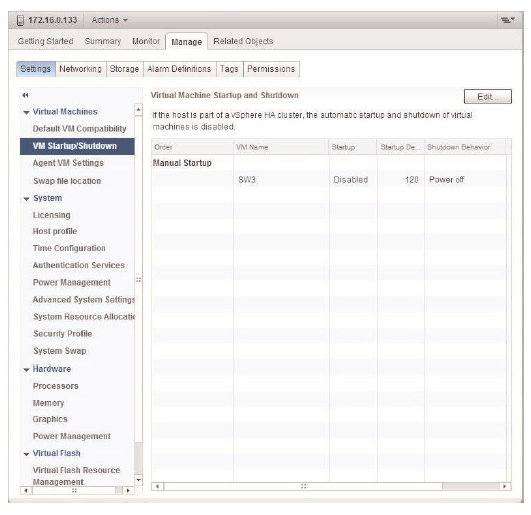

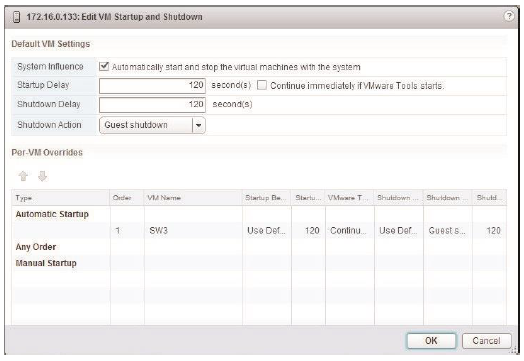

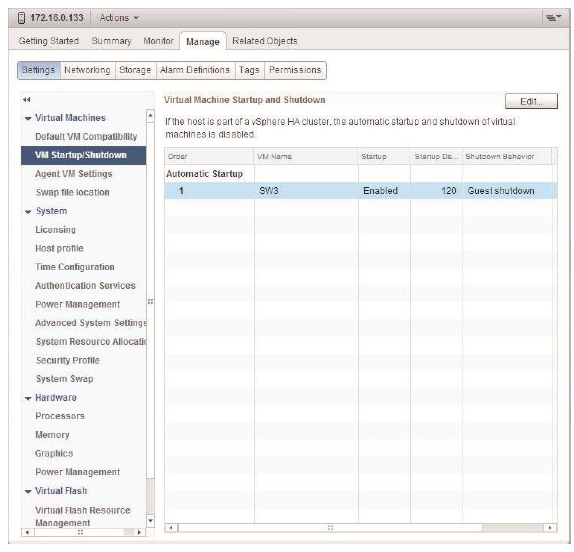

3. Open VM Startup/Shutdown inset for third ESXi server and click Edit…

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

4. Check System Influence and select Guest shutdown as Shutdown Action. Set the VM startup policy.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

5. Inset should look like the screenshot below.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere

6. After that open cluster setting, inset vSphere HA, click Edit… and Turn ON vSphere HA back again.

StarWind Virtual SAN Hyper Converged Cluster: Scale Out Existing Deployments for VMware vSphere
