StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

Published: October 15, 2012

This document refers to the previous StarWind Virtual SAN version. To view the document for the current version, please follow this link

INTRODUCTION

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

CREATING AN HA DEVICE

1. Open a StarWind configuration file.

Note: The default path is C:\Program Files\StarWind Software\StarWind\StarWind.cfg

2. Find the string “<!–<iScsiDiscoveryListInterfaces value=”1″/> –>” and uncomment it (should look as follows: <iScsiDiscoveryListInterfaces value=”1″/>).

3. Restart StarWind Service and repeat the same procedure on another StarWind HA node.

4. Launch StarWind Management Console: Start -> All Programs -> StarWind Software -> StarWind.

Note: The StarWind Console icon appears in the system tray when the Console is running. To open StarWind Management Console, double-click the icon or right-click it and then select Start Management Console from the shortcut menu.

5. Select the server you want to provide with the iSCSI target device from the Console tree. Double-click the host to connect.

Note: If you are prompted to enter login and password, specify “root” and “starwind”, relatively. These are the default login and password, but you can always change them later.

6. After connecting to StarWind Service, you can create devices and targets on the server. Open Add Device Wizard by one of the following ways:

• Select Add Device from the Target menu.
• Select Add Device from the Devices shortcut menu (right-click to open it).

7. Add Device Wizard appears. Please, follow the wizard’s steps to complete creation of a new HA device.

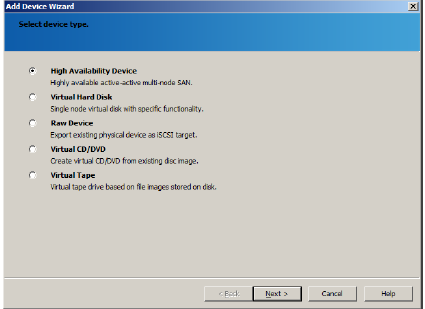

8. Select High Availability Device.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

9. Click Next to continue.

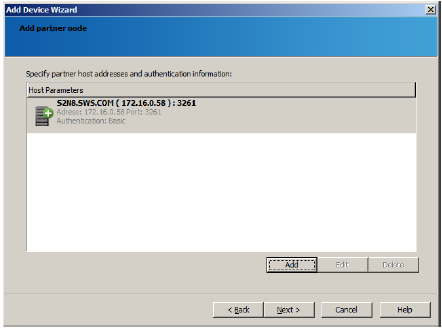

10. Click Add to add a new host.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

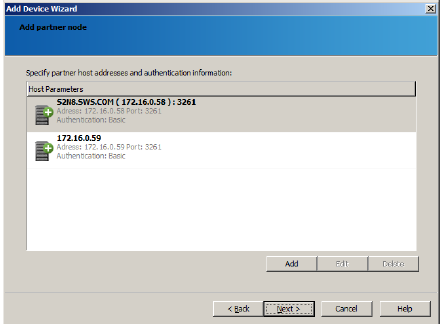

11. Specify partner server parameters. Enter the server IP-address in the Host text field. If needed, specify username and password for StarWind Service in the corresponding text fields.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

12. Click Next to continue.

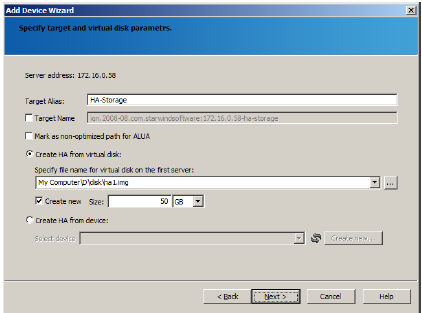

13. Specify corresponding information in the Target Alias and Target Name text fields.

Note: The name must be unique. Under this name the device is declared to iSCSI initiators that are connected to StarWind Service over an IP network.

14. Click to specify a name and location of an HA virtual disk on the server. If you want to create a new virtual disk, select the Create New checkbox.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

15. Click Next to continue.

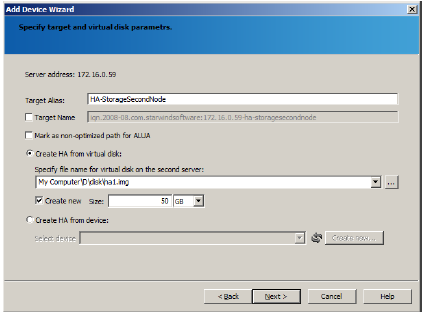

16. Specify target and virtual disk parameters of the second node.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

17. Click Next to continue.

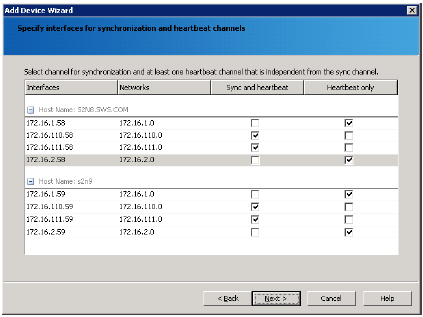

18. Configure data synchronization and Heartbeat channel parameters.

Note: At least one Heartbeat channel must be separated from a synchronization channel due to availability considerations.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

19. Click Next to continue.

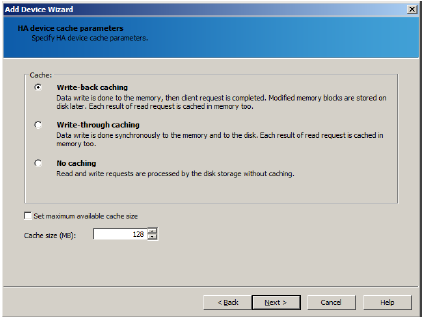

20. Specify cache parameters of the HA device.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

21. Click Next to continue.

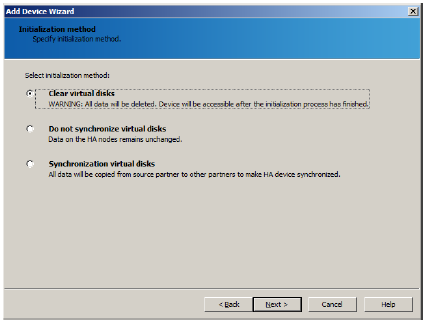

22. Select an initialization method of the HA device.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

23. Check whether device parameters are correct. Click Back to make any changes. Click Next to continue.

24. Click Finish to close the wizard.

Follow the similar procedure to create the second HA device that will be used as a witness disk.

CONFIGURING HYPER-V SERVERS

This document assumes that you already have configured Active Directory and two servers on the domain. It also assumes that you have enabled the Failover Clustering, Multipath I/O features and the Hyper-V role on the both servers. These configurations can be performed using Server Manager (the Add Roles and Features option).

1. Launch Server Manager, select the Manage item and click the Add Roles and Features option. Install the Hyper-V role, Multipath I/O and Failover Clustering features by following the wizard’s steps.

Note: Restart the server after installation is completed.

2. Select Role-based or feature-based installation as an installation type and click Next to continue.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

3. Select a server from the server pool. Use a filter to find an appropriate server.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

4. Click Next to continue.

5. Select the Hyper-V checkbox in the Server Roles section.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

6. Click Next to continue.

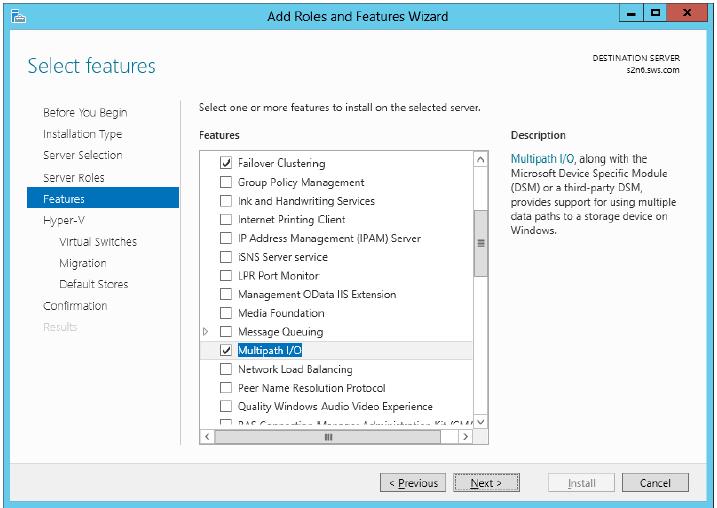

7. Select Failover Clustering and Multipath I/O checkboxes in the Features section.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

8. Click Next to continue.

9. Select network adapters for virtual switches in the Virtual Switches section.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

10. Click Next to continue.

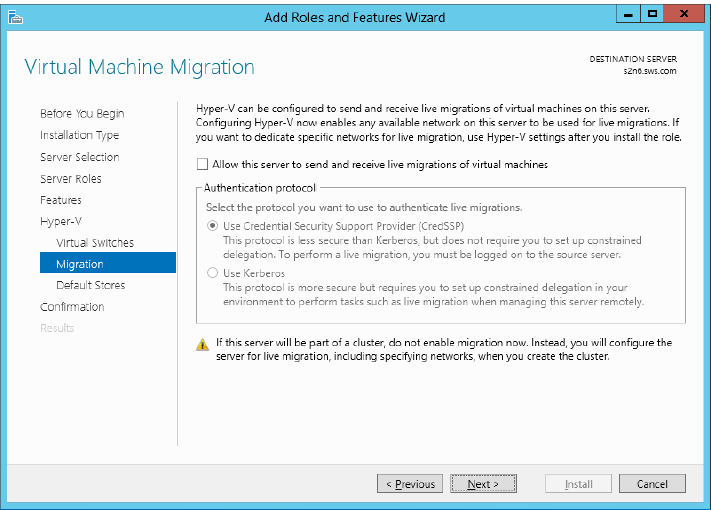

11. Select settings of VM live migration in the Migration section.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

12. Click Next to continue.

13. Select location of virtual hard disk files in the Default Stores section.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

14. Click Next to continue.

15. Select the checkbox to restart the server automatically and click Install. Otherwise, click Install and restart server manually after the installation is completed.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

CONNECTING TARGETS

To connect the previously created disks on all servers that will be added to the cluster:

1. Launch Microsoft iSCSI Initiator: Start > Administrative Tools > iSCSI Initiator. The iSCSI Initiator Properties window appears.

2. Navigate to the Discovery tab.

3. Click Discover Portal. Enter an IP address of each StarWind Server in the appropriate field of the Discover Target Portal dialog. Click OK.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

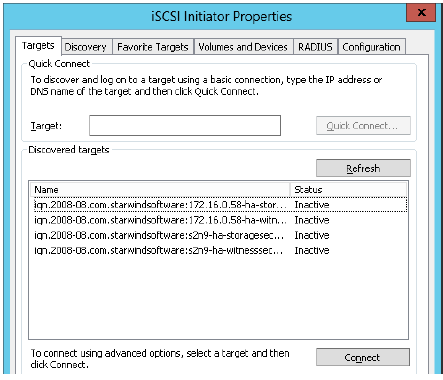

4. Click the Targets tab. The previously created targets are listed in the Discovered Targets section.

Note: If created targets are not listed, check the firewall settings of the StarWind Server as well as the list of networks served by the StarWind Server (go to StarWind Management Console -> Configuration -> Network).

5. Select each of the targets and click Connect to add them.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

6. Select Add this connection to the list of Favorite Targets and Enable multi-path checkboxes in the Connect to Target dialog. Click Advanced.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

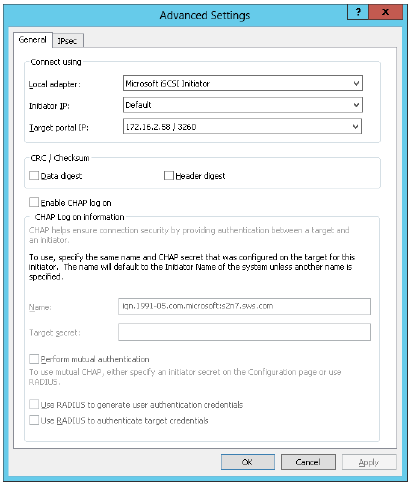

7. Select Microsoft iSCSI Initiator in the Local adapter text field. In the Target portal IP select the first portal IP. Click OK.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

8. Select the same target and again click Connect. Perform the actions described in the items 6-7 of this section; this time specify another IP address as a target portal IP. Click OK.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

9. Repeat the actions described in the steps 5-8 for each target.

10. Open the MPIO manager: Start -> Administrative Tools -> MPIO.

11. Go to the Discover Multi-Paths tab. Select the Add support for iSCSI devices checkbox and click Add.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

12. When prompted to restart the server, click Yes to proceed. After the server is restarted, initialize the disk and create partitions, as if it were a physical hard drive.

INITIALIZING DISKS

Note: The StarWind disks must be initialized and formatted, before they can be utilized as cluster disks.
Changes made to the first node (e.g. initialization or partition) are displayed on the second node as soon as it is brought online.

To initialize disks and create partitions:

1. Launch the Computer Management console.

2. Go to Storage -> Disk Management.

3. Right-click each disk and select Online Disk to bring it online.

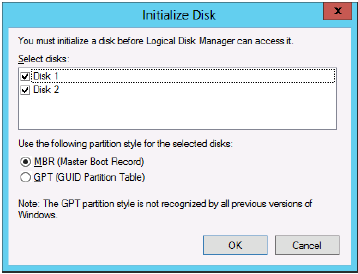

4. Right-click each disk and select Initialize Disk to initialize it. Follow the wizard’s instructions to initialize disks.

Note: Select MBR (Master Boot Record) as a partition style.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

5. Click OK to continue.

The Computer Management console should look as shown in the screenshot below.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

To create partitions and format new disks:

1. Right-click each disk in the Computer Management window and select New Simple Volume.

2. Follow the wizard’s instructions to create partitions.

The Computer Management window should look as shown in the screenshot below.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

The same actions need to be done on the other servers, except that creating partitions will no longer be necessary. The Computer Management window should look as follows.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

CREATING A CLUSTER

To validate a cluster:

1. Open Server Manager. Select the Failover Cluster Manager item from the Tools menu.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

2. Before creating a cluster, verify whether your servers are suitable for building a cluster: click Validate a Configuration in the Actions section.

To create a cluster:

1. Click the Create a Cluster item in the Actions section of Failover Cluster Manager.

2. Specify servers to be included to the cluster.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

3. Click Next to continue.

4. Specify a cluster name.

Note: If the cluster servers get IP addresses over DHCP, the cluster gets its IP address over DHCP as well. If the IP addresses are set statically, you need to set a cluster IP address manually as well.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

5. Click Next to continue.

6. Make sure that all of the settings are correct. Click Previous to make any changes. Click Next to continue.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

7. The process of creating a cluster begins. After creation of the cluster is completed a report with additional information is displayed.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

8. Click Finish to close the wizard.

After these actions, the Failover Cluster Manager window should look as follows.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

ENABLING CLUSTER SHARED VOLUMES

To enable Cluster Shared Volumes (CSV) that is necessary to work with Hyper-V virtual machines:

1. Open Failover Cluster Manager.

2. Go to Cluster->Storage -> Disks.

3. Right-click the needed disk and select Add to Cluster Shared Volumes.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

CREATING AN HA VIRTUAL MACHINE

To create an HA virtual machine:

1. Launch Failover Cluster Manager.

2. Right-click the Roles item and go to Virtual Machines -> New Virtual Machine.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

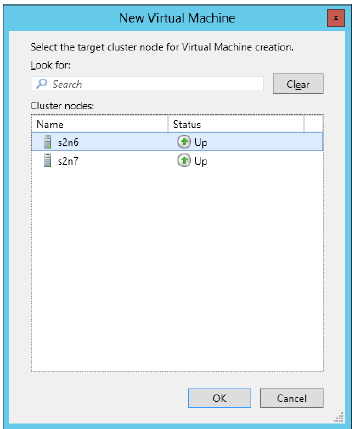

3. Select a target cluster node for VM creation and click OK.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

4. Specify a name and location of the virtual machine.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

5. Click Next to continue.

6. Define memory size to allocate to the virtual machine.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

7. Click Next to continue.

8. Specify necessary network connection options or leave the default parameters unchanged.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

9. Click Next to continue.

10. Specify name, size, and location of the virtual disk.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

11. Click Next to continue.

12. Specify installation options of the operating system or leave the default parameters unchanged.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

13. Click Next to continue.

14. Make sure that all of the parameters are correct. Click Previous to make any changes.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

15. Click Finish.

16. Right-click the added virtual machine and click Start.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

17. Make sure that the virtual machine is running and operating successfully.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

LIVE MIGRATION OF A VIRTUAL MACHINE

To live migrate a virtual machine to another node:

1. Launch Failover Cluster Manager.

2. Right-click the needed virtual machine and go to Move -> Live Migration -> Select Node.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

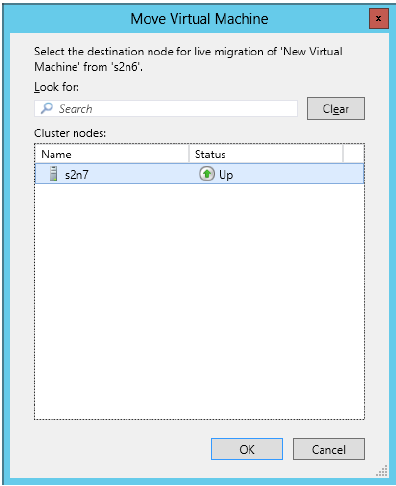

3. Select node for live migration in the Move Virtual Machine dialog.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012

4. Click OK to continue.

Make sure that live migration was successful. Failover Cluster Manager should look as follows.

StarWind iSCSI SAN & NAS: Configuring HA Storage for Live Migration on Windows Server 2012
